Olympic Kilns · Electric Kiln · Front-Loading Glass Kiln
Olympic 189 Slider Glass Firing Kiln

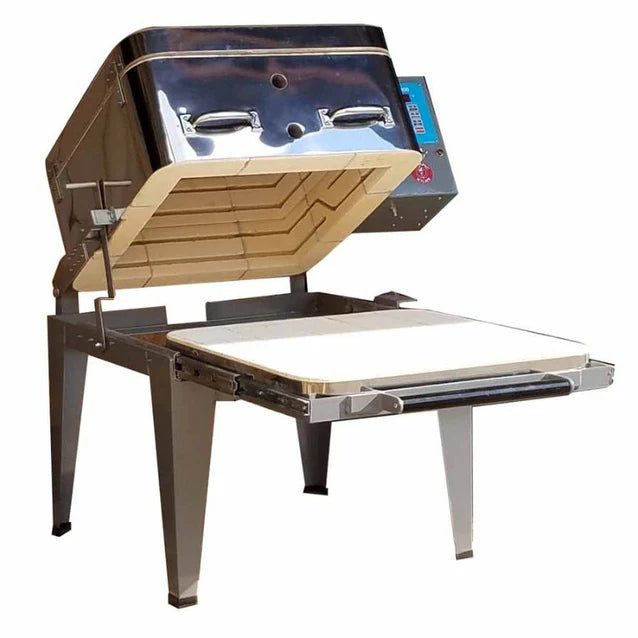

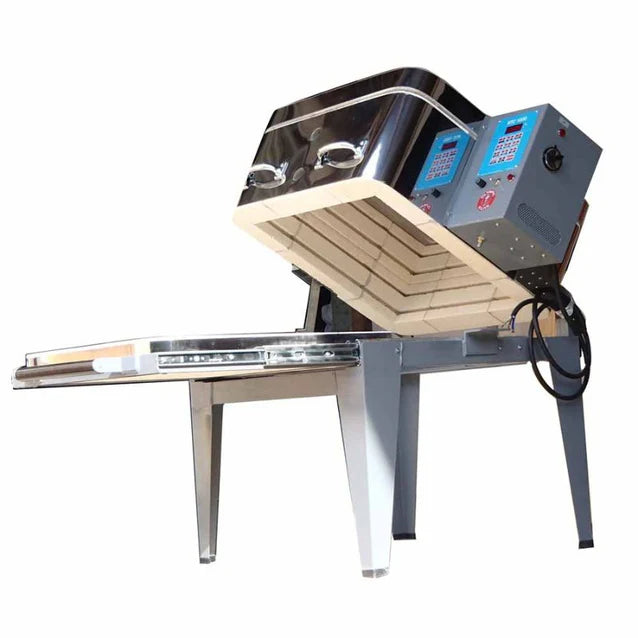

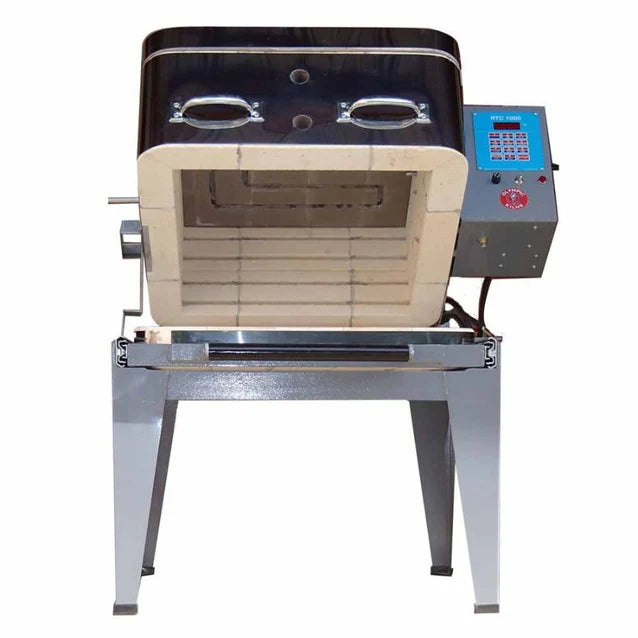

The Olympic 189 Slider features an innovative clamshell design with a sliding floor that extends 44 inches front-to-back, making loading and unloading large glass sheets safer and easier than traditional top-loading kilns. The 18-inch square chamber with 9-inch height provides ample space for fusing, slumping, and annealing projects up to 1700°F. This front-loading configuration eliminates the need to reach over hot elements and allows projects to be loaded at comfortable waist height.
Max Temperature1700°F
Firing Chamber18″ × 18″ × 9″
Power Requirement240V or 208V
Slider Extension44″ front-to-back
What’s included
Clamshell Design with Sliding Floor
Front-loading configuration with floor that extends 44 inches for easy loading and unloading of glass projects
KilnStar Controller
Digital controller with cone fire and Vary-Fire programming modes for precise glass firing schedules
3-Inch Firebrick Construction
High-quality insulating firebrick for excellent heat retention and energy efficiency
Balanced Heating Elements
Premium Kanthal A-1 elements positioned for even heat distribution throughout the chamber
Stainless Steel Jacket
Durable exterior with powder-coated finish for long-lasting protection
Pilot Light
Front-mounted indicator shows when kiln is powered on
Technical specifications
Model NumberOlympic 189 Slider
Interior Dimensions18″ W × 18″ D × 9″ H
Cubic Feet1.69 cu ft
Slider Extension44 inches front-to-back
Brick Thickness3 inches
Maximum Temperature1700°F
Voltage Options240V single phase or 208V single phase
Amperage (240V)20.8 amps
Wattage (240V)5,000 watts
Recommended Breaker30 amp
Plug ConfigurationNEMA 6-30
Wire Size10-gauge minimum
Element TypeKanthal A-1 wire
ControllerKilnStar with cone fire and Vary-Fire modes
Shipping WeightApproximately 250 lbs
Optional accessories
Glass Kiln Furniture Kit
Kiln-washed shelves, posts, and fiber paper specifically designed for glass fusing and slumping applications
Orton Kiln Vent System
Downdraft ventilation system removes fumes and maintains kiln room air quality during glass firing
Solid State Relay (SSR) Upgrade
Replaces standard mechanical relays for quieter operation and longer relay life with no clicking sounds
Power Interrupt Monitor
Alerts you if power is interrupted during a firing cycle to prevent failed glass projects
Type S Thermocouple Replacement
Backup thermocouple for maintaining accurate temperature readings in glass firing applications
Emergency Parts Kit
Includes thermocouple, relays, and fuses for quick repairs and minimal downtime
Controller upgrade
Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis touchscreen controller offers advanced programming capabilities ideal for complex glass firing schedules including multi-segment ramp/hold programs for annealing, fusing, and slumping. The large color display and intuitive interface make programming detailed firing curves significantly easier than standard controllers.
- Large full-color touchscreen with clear visual feedback
- Store up to 40 custom glass firing programs with unlimited segments
- Real-time graph displays temperature curve during firing
- Delay start function to begin firing at a specific time
- Alarm notifications for completion and error conditions
- Built-in cone fire conversion and advanced annealing schedules
Common questions
What glass applications can I do in the 189 Slider?
The 189 Slider is designed for fusing, slumping, and annealing glass up to 1700°F. The 18×18-inch floor accommodates full sheets or large glass projects, while the 9-inch height provides clearance for slumping molds and multi-layer fusing. The sliding floor design makes it particularly well-suited for loading delicate glass arrangements without disturbing your setup.
Do I need an electrician to install this kiln?
Yes. The 189 Slider requires a dedicated 240V, 30-amp circuit with a NEMA 6-30 receptacle and 10-gauge wiring. We strongly recommend hiring a licensed electrician to install the circuit according to local electrical codes. The kiln can also be wired for 208V in commercial settings where that voltage is available.
What kiln furniture do I need for glass firing?
You'll need kiln-washed shelves designed for glass work, fiber paper, and slumping molds depending on your projects. Standard ceramic kiln shelves work but must be properly prepared with kiln wash or fiber paper to prevent glass from sticking. We recommend purchasing a glass kiln furniture kit that includes shelves, posts, and fiber paper specifically sized for the 189 Slider.
How does the sliding floor mechanism work?

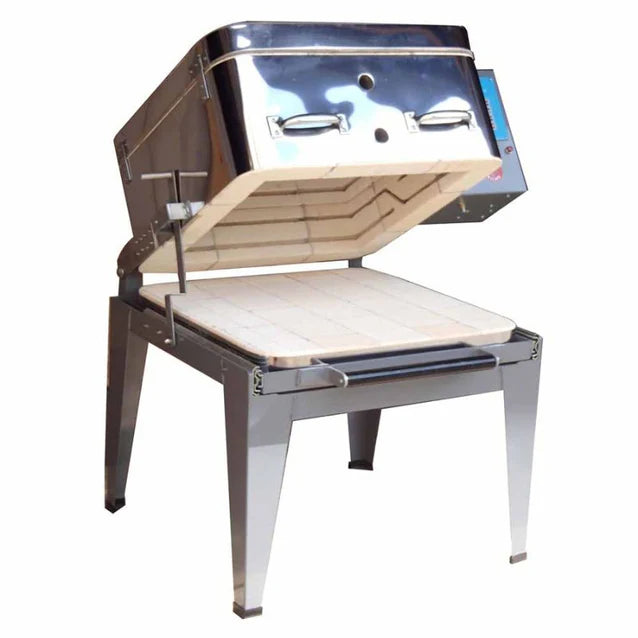

The clamshell lid lifts open while the floor slides forward on rails, extending 44 inches out from the kiln. This allows you to load and unload projects at waist height without reaching over hot elements. The sliding mechanism is smooth and stable, keeping your glass work level during loading and eliminating the awkward overhead positioning required with top-loading kilns.
What's covered under the Olympic warranty?
Olympic provides a one-year limited warranty covering defects in materials and workmanship. The kiln must be registered within 30 days of delivery, and the warranty is valid only when purchased through authorized dealers like Peach State Pottery. Elements are considered consumable items and have limited coverage. Proper installation and maintenance are required to maintain warranty coverage.
