by Paragon

Paragon KM25 Vertical Base Knife Heat Treating Oven

SKU KM25-VERT-BLUE
$3,150.00
Talk to an Expert Secure Checkout Flexible Returns No Sales Tax Outside GA
Color: Blue

Notify me when back in stock

Not sure this is the right fit? Power, size, firing needs: talk it through with a real person before you order. Call or text (470) 264-3563

🚚
Free Freight Delivery Included
✓ No sales tax outside GA ✓ Liftgate included free ✓ Authorized dealer
🔨
Made to Order: Smaller models typically ship in 2–4 weeks. Larger kilns may take up to 12 weeks. We confirm your estimate after ordering.
  1. 1 We submit your kiln order for production with the manufacturer.
  2. 2 We confirm the current estimated lead time and keep you updated.
  3. 3 Your kiln is built to your specifications and prepared for freight shipment.
  4. 4 We send tracking and delivery instructions once your kiln ships.

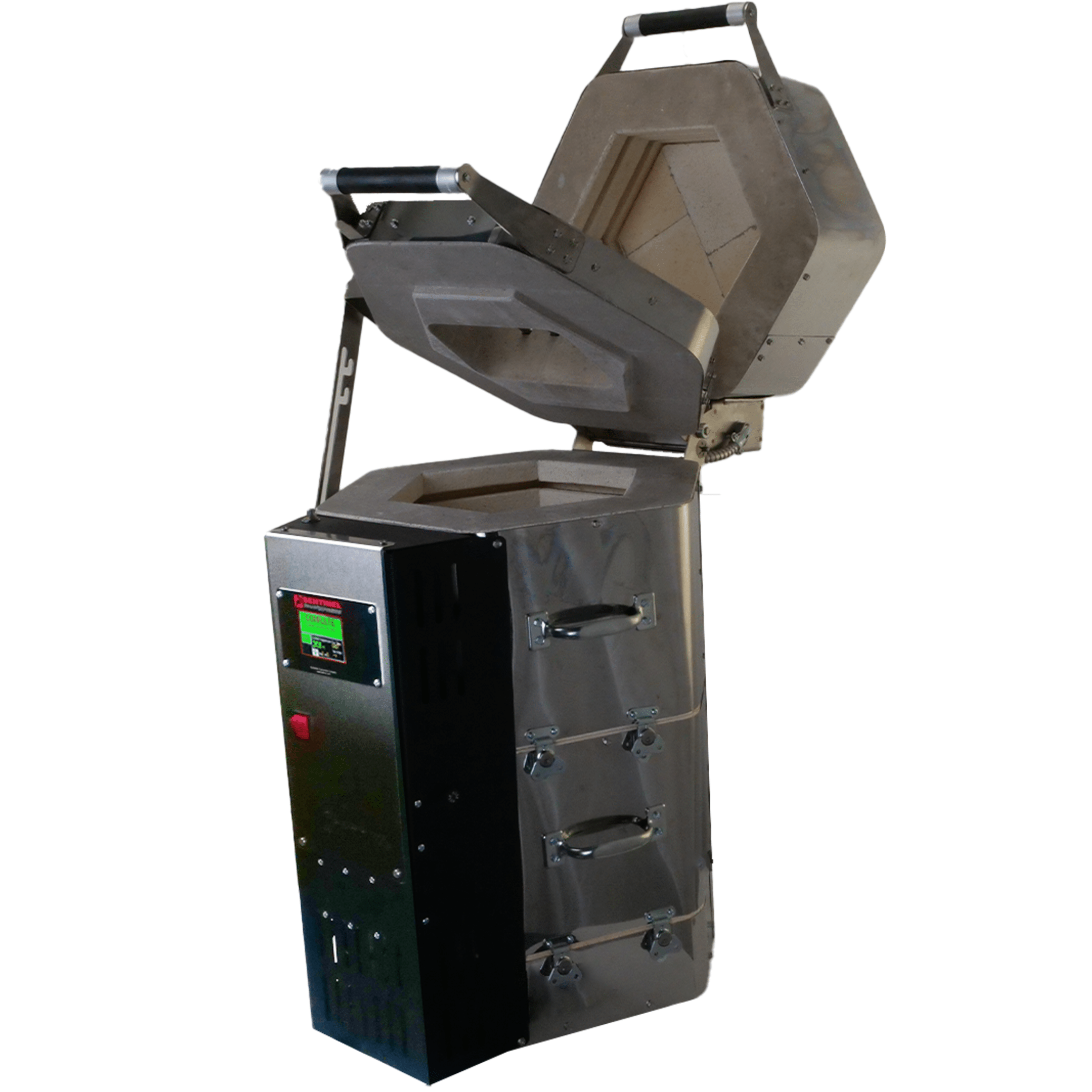

Paragon · Heat Treating Oven · Vertical Knifemaking Paragon KM25 Vertical Base Knife Heat Treating Oven KM25 Vertical Base · 240V Single-Phase · 11" x 25" Vertical Chamber The KM25 Vertical Base brings vertical heat treating into a compact, accessible design for bladesmiths who want to normalize, harden, and temper longer blades without a horizontal barrel. Blades hang from an optional rod hanger system in an 11" diameter x 25" deep chamber with dual independent heating zones, or lay flat on the ceramic floor insert in the top hot zone for shorter work. Built on a heavy-duty stand with 3" firebrick insulation throughout.
Chamber size11" dia. x 25" deep
OrientationVertical
Power240V Single-Phase
ZonesDual independent
Key features
Dual solid-state relay control
Independent zone control with backup mechanical safety relays for reliable, repeatable heat treating
Two independent thermocouples
Dual-zone temperature monitoring for consistent heat along the full blade length
Lid safety switch
Automatically cuts power when the lid is opened during operation
3" firebrick insulation
Full firebrick construction throughout for heat retention and durability
Ceramic floor insert
Top hot zone doubles as a horizontal firing space for shorter blades
Heavy-duty stand
Elevated steel stand built for the vertical chamber's footprint and daily shop use
Controller upgrade
SENTINEL Smart Fire upgrade
Digital ramp/hold/cool-down programming with a clear readout, upgrading from the standard relay-based control
SENTINEL Touch Xpress upgrade
Full touchscreen control with customizable multi-segment programs, our most popular upgrade for repeat heat-treating work
Optional accessories
Rod hanger system
Suspends blades vertically in the chamber for even heat along the full length
Knifemaker's Heat Treating Kit
Gloves, heat-treating fork, knifeholders, and firebrick supports
Gas Inlet & Flow Meter
Adds atmosphere control for reduced scale during heat treating
Replacement heating elements
Spare element set for future maintenance
Common questions
Why choose a vertical chamber over a horizontal Double Barrel oven?
A vertical chamber lets you suspend a blade from a rod hanger so it heats evenly along its full length without needing a long horizontal footprint in your shop — useful for longer blades or shops tight on bench space.
Can I still fire shorter blades horizontally?
Yes. The top hot zone includes a ceramic floor insert so shorter blades can be laid flat instead of hung, giving you both orientations in one oven.
What's the difference between the Vertical Base and a Vertical Pro?
The Base ships with dual solid-state relay control and independent zone thermocouples as standard. A SENTINEL Smart Fire or Touch Xpress controller upgrade is available if you want digital programmability instead of relay-based control.
Do I need the rod hanger system to use this oven?
No — it's an optional accessory. Without it, you can still use the top hot zone's ceramic floor insert to fire blades horizontally.
Is the warranty valid if I buy from Peach State Pottery?
Yes. Peach State Pottery is an authorized Paragon dealer, so your KM25 Vertical Base comes with Paragon's full one-year manufacturer's warranty. Register your oven within 30 days of delivery to activate coverage.
