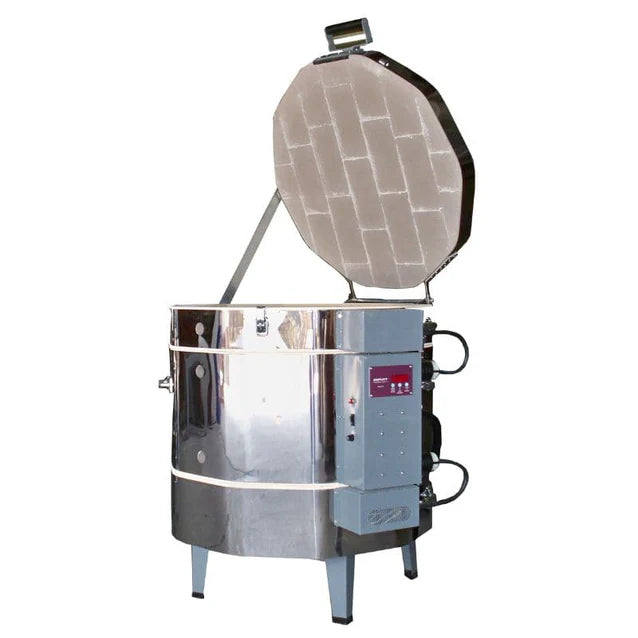

Olympic Kilns 2323HE electric kiln with lid open showing round chamber and KilnStar controller mounted on side

Olympic Kilns 2323HE Electric Kiln

by Olympic Kilns
Save $259.00
$4,540.00
$4,281.00
Authorized Olympic Kilns Dealer
🚚 Free Freight Delivery Included
Ships to the contiguous U.S. with no freight charge at checkout. Liftgate delivery is included free. Only very remote locations, islands, or limited-access addresses may require a fee — we always confirm before processing.
No sales tax outside Georgia  ·  No hidden charges after ordering
★
Best for
Serious hobbyists, home studio potters, and small production studios who need a reliable, high-fire American-made kiln with full manufacturer support and room to grow.
🔨 Lead time
8–12 weeks
Made to order — built to your exact voltage and controller selections after ordering.
✓ Warranty
Manufacturer warranty
Full coverage included. We are here if anything goes wrong.
⚡
Need it sooner? Quick-Ship models ship in 2–3 weeks
Pre-configured — no waiting on custom builds
View Quick-Ship
✓ Why buy from Peach State Pottery?
★ Authorized Olympic Kilns Dealer
★ No sales tax outside Georgia
★ Free shipping included
★ Real support before & after order
★ Military discount for veterans
★ We are here if anything goes wrong
Call or text us:✆ (470) 264-3563
⏱
Production batches fill quickly
Olympic kilns are made to order. Placing your order now secures your spot in the current production batch and locks in today’s pricing. Lead times can extend during busy periods.
Have questions before you order?
Call or text us at (470) 264-3563 — we will help confirm the right setup for your studio.
✆ Call or text us ✉ Save 3% with wire transfer

Notify me when back in stock

Olympic Kilns · Electric Kiln · Stackable Top-Loading Olympic 2323HE Electric Kiln Model 2323HE · 240V or 208V · 23.375″ W × 22.5″ H · 5.83 Cubic Feet · Cone 10 / 2350°F The Olympic 2323HE is a stackable electric kiln designed for high-fire ceramics up to Cone 10, featuring 5.83 cubic feet of firing chamber capacity in a 23.375″ diameter format. This three-section kiln includes the KilnStar controller with five standard programs and 20 user-definable programs, plus 3-inch insulating firebrick for efficient high-temperature firing. The stackable design allows you to add or remove sections as your production needs change.
Maximum TemperatureCone 10 / 2350°F
Chamber Size23.375″ W × 22.5″ H / 5.83 cu ft
Electrical240V or 208V operation
DesignStackable 3-section configuration
What’s included

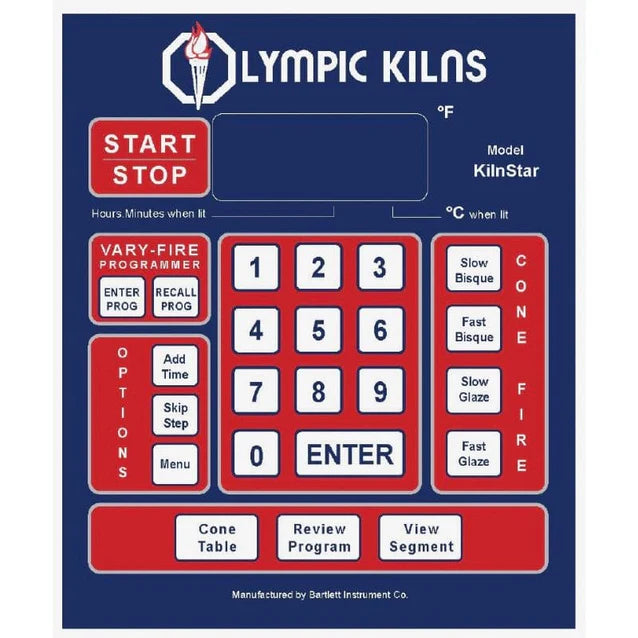

KilnStar Digital Controller Five pre-programmed firing schedules plus 20 user-definable programs with cone fire and speed fire modes
3-Inch Insulating Firebrick High-grade insulation for efficient Cone 10 firing with reduced energy consumption and outer shell temperatures
Stainless Steel Jacket Durable stainless steel outer casing with riveted stainless bands for structural integrity and long service life
Metal Stand Heavy-duty steel stand with 12-inch leg height for comfortable loading and proper kiln ventilation clearance
Balanced Element Design Precision-coiled elements in grooved brick for even heat distribution and extended element life
Pilot Light Indicator Front-mounted indicator light shows when kiln is receiving power for safety awareness
Stackable Configuration Three-section construction allows adding or removing rings to customize firing chamber height
Spring-Loaded Lid Counterweighted lid system for easy one-handed opening and secure closing
Technical specifications
Model2323HE
Interior Dimensions23.375″ diameter × 22.5″ height
Firing Chamber Capacity5.83 cubic feet
Brick Thickness3 inches
Maximum TemperatureCone 10 / 2350°F
Voltage Options240V single-phase or 208V single-phase
Amperage @ 240V44 amps
Amperage @ 208V51 amps
Wattage @ 240V10,560 watts
Wattage @ 208V10,608 watts
Circuit Breaker @ 240V60-amp breaker required
Circuit Breaker @ 208V60-amp breaker required
Plug ConfigurationHardwire installation (no plug included)
Wire Size Required6-gauge copper wire minimum
Sections3 stackable rings plus lid and base
Estimated Shipping Weight450 lbs
Warranty: One-year limited kiln warranty from Olympic Kilns. Must be registered within 30 days of delivery. Valid only through authorized dealers.
Optional accessories
Solid State Relay (SSR) Upgrade Silent operation with no mechanical relay clicking, extended control reliability, and reduced electrical noise
Furniture Kit Kiln shelf, posts, and stilts sized specifically for the 23.375″ diameter chamber to maximize loading capacity

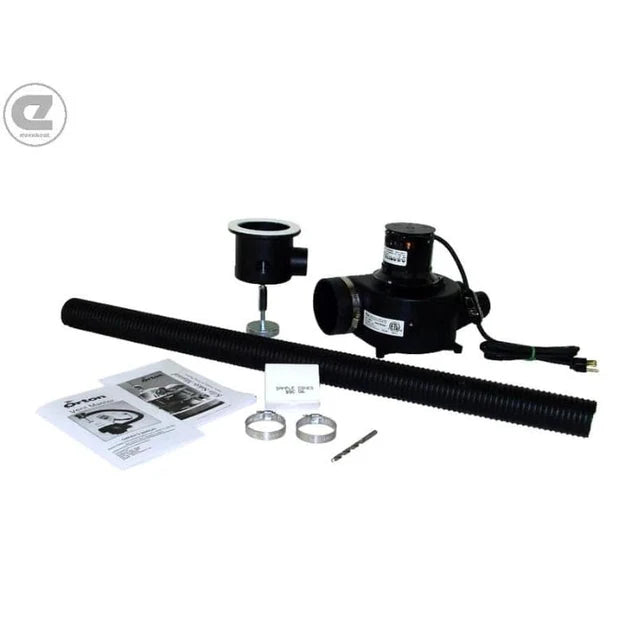

Orton Kiln Vent System Downdraft ventilation system removes fumes and moisture during firing while improving temperature uniformity
Automatic Lid Lift Motorized lid opener cracks lid at end of firing for controlled cooling and reduced manual handling
Rolling Stand Heavy-duty wheeled base with locking casters for kiln mobility within your studio space
Power Interrupt Module Automatically shuts off kiln when firing is complete to prevent unattended operation and save energy
Dual Media Lid Specialized lid with additional elements for even heating when firing glass or flat work
Multi-Zone Control Upgrade Independent control of top, middle, and bottom element zones for precise temperature profiling
Emergency Parts Kit Critical replacement components including thermocouple, relays, and fuses for minimal downtime
Type S Thermocouple Upgrade Premium thermocouple provides faster response time and extended accuracy at high temperatures
Controller upgrade

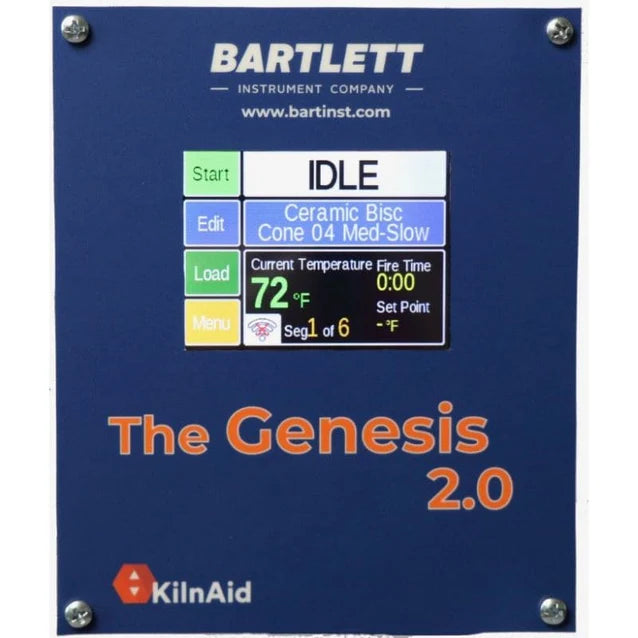

Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis replaces the standard KilnStar controller with a full-color 4.3-inch touchscreen interface offering advanced programming capabilities and real-time firing data. Features include 250 user programs, custom cone tables, integrated kiln log storage, and USB connectivity for program backup and software updates.
  • 4.3-inch full-color touchscreen with intuitive menu navigation
  • Store up to 250 custom firing programs with detailed ramp-and-hold steps
  • Automatic log recording of every firing with temperature graphs and cone results
  • Custom cone fire tables allow precise calibration for your clay and glaze results
  • USB port for program backup, software updates, and data transfer to computer
  • Delay start, preheat, and controlled cooling features for advanced firing schedules
Common questions
What electrical work is required to install the 2323HE?
The 2323HE requires a dedicated 60-amp circuit with hardwire installation (no plug). At 240V, it draws 44 amps; at 208V, it draws 51 amps. You'll need 6-gauge copper wire run from your electrical panel to the kiln location. A licensed electrician should complete the installation and ensure proper grounding and circuit protection. The kiln does not come with a power cord and must be hardwired according to local electrical codes.
Does the kiln come with shelves and posts?
No, furniture (shelves, posts, and stilts) is not included with the kiln and must be purchased separately. We recommend ordering a furniture kit sized for the 23.375″ diameter chamber when you purchase the kiln. A typical furniture kit for this size includes multiple shelves, various height posts, and stilts for proper stacking and airflow during firing.
Can I add or remove sections from this kiln later?
Yes, the 2323HE's stackable design allows you to purchase additional 7.5-inch rings to increase firing chamber height or remove rings to reduce capacity. Each ring adds approximately 1.94 cubic feet of volume. Changes to the number of sections require element and electrical adjustments, so consult with Olympic Kilns or Peach State Pottery before modifying your kiln configuration.
How do I activate the Olympic Kilns warranty?
You must register your kiln with Olympic Kilns within 30 days of delivery to activate the one-year limited warranty. Registration can be completed on the Olympic Kilns website using your kiln serial number and purchase information. The warranty is valid only for kilns purchased through authorized dealers like Peach State Pottery and covers defects in materials and workmanship under normal use.
What is the difference between the standard KilnStar controller and the Genesis upgrade?
The standard KilnStar controller includes five pre-programmed firing schedules and 20 user-definable programs with basic ramp-and-hold functionality. The Genesis upgrade provides a full-color touchscreen interface, 250 program storage capacity, automatic firing logs with temperature graphs, USB connectivity for data backup, and custom cone tables for precise calibration. The Genesis is recommended for production studios or advanced ceramicists who need detailed firing documentation and complex firing schedules.
Not sure if the 2323HE is the right kiln for your space? Our team can help you evaluate electrical requirements, firing capacity needs, and configuration options.
Talk to an expert →
Description
Olympic Kilns · Electric Kiln · Stackable Top-Loading Olympic 2323HE Electric Kiln Model 2323HE · 240V or 208V · 23.375″ W × 22.5″ H · 5.83 Cubic Feet · Cone 10 / 2350°F The Olympic 2323HE is a stackable electric kiln designed for high-fire ceramics up to Cone 10, featuring 5.83 cubic feet of firing chamber capacity in a 23.375″ diameter format. This three-section kiln includes the KilnStar controller with five standard programs and 20 user-definable programs, plus 3-inch insulating firebrick for efficient high-temperature firing. The stackable design allows you to add or remove sections as your production needs change. Maximum TemperatureCone 10 / 2350°F Chamber Size23.375″ W × 22.5″ H / 5.83 cu ft Electrical240V or 208V operation DesignStackable 3-section configuration What’s included KilnStar Digital Controller Five pre-programmed firing schedules plus 20 user-definable programs with cone fire and speed fire modes 3-Inch Insulating Firebrick High-grade insulation for efficient Cone 10 firing with reduced energy consumption and outer shell temperatures Stainless Steel Jacket Durable stainless steel outer casing with riveted stainless bands for structural integrity and long service life Metal Stand Heavy-duty steel stand with 12-inch leg height for comfortable loading and proper kiln ventilation clearance Balanced Element Design Precision-coiled elements in grooved brick for even heat distribution and extended element life Pilot Light Indicator Front-mounted indicator light shows when kiln is receiving power for safety awareness Stackable Configuration Three-section construction allows adding or removing rings to customize firing chamber height Spring-Loaded Lid Counterweighted lid system for easy one-handed opening and secure closing Technical specifications Model2323HE Interior Dimensions23.375″ diameter × 22.5″ height Firing Chamber Capacity5.83 cubic feet Brick Thickness3 inches Maximum TemperatureCone 10 / 2350°F Voltage Options240V single-phase or 208V single-phase Amperage @ 240V44 amps Amperage @ 208V51 amps Wattage @ 240V10,560 watts Wattage @ 208V10,608 watts Circuit Breaker @ 240V60-amp breaker required Circuit Breaker @ 208V60-amp breaker required Plug ConfigurationHardwire installation (no plug included) Wire Size Required6-gauge copper wire minimum Sections3 stackable rings plus lid and base Estimated Shipping Weight450 lbs Warranty: One-year limited kiln warranty from Olympic Kilns. Must be registered within 30 days of delivery. Valid only through authorized dealers. Optional accessories Solid State Relay (SSR) Upgrade Silent operation with no mechanical relay clicking, extended control reliability, and reduced electrical noise Furniture Kit Kiln shelf, posts, and stilts sized specifically for the 23.375″ diameter chamber to maximize loading capacity Orton Kiln Vent System Downdraft ventilation system removes fumes and moisture during firing while improving temperature uniformity Automatic Lid Lift Motorized lid opener cracks lid at end of firing for controlled cooling and reduced manual handling Rolling Stand Heavy-duty wheeled base with locking casters for kiln mobility within your studio space Power Interrupt Module Automatically shuts off kiln when firing is complete to prevent unattended operation and save energy Dual Media Lid Specialized lid with additional elements for even heating when firing glass or flat work Multi-Zone Control Upgrade Independent control of top, middle, and bottom element zones for precise temperature profiling Emergency Parts Kit Critical replacement components including thermocouple, relays, and fuses for minimal downtime Type S Thermocouple Upgrade Premium thermocouple provides faster response time and extended accuracy at high temperatures Controller upgrade Genesis Touchscreen — Bartlett InstrumentsRecommended The Genesis replaces the standard KilnStar controller with a full-color 4.3-inch touchscreen interface offering advanced programming capabilities and real-time firing data. Features include 250 user programs, custom cone tables, integrated kiln log storage, and USB connectivity for program backup and software updates.
  • 4.3-inch full-color touchscreen with intuitive menu navigation
  • Store up to 250 custom firing programs with detailed ramp-and-hold steps
  • Automatic log recording of every firing with temperature graphs and cone results
  • Custom cone fire tables allow precise calibration for your clay and glaze results
  • USB port for program backup, software updates, and data transfer to computer
  • Delay start, preheat, and controlled cooling features for advanced firing schedules
