Olympic Kilns 2023HE Oval Electric Kiln
Save $1,307.00
Original Price
$5,135.00
Current Price
$3,828.00
Free Freight Delivery Included
✓ No sales tax outside GA
✓ Liftgate included free
✓ Authorized dealer
Made to Order: Kilns are built after ordering to your exact specifications. Current estimate is 8–12 weeks.
Need it sooner? Quick-Ship models ship in 2–3 weeks
View Quick-Ship
Questions? Call or text us at (470) 264-3563
Olympic Kilns · Electric Kiln · Oval Top-Loading

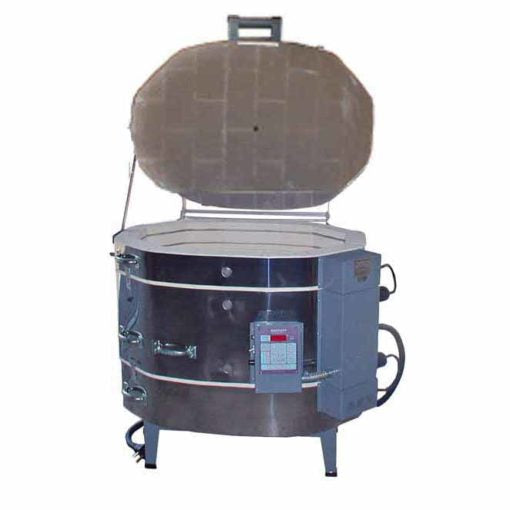

Olympic 2023HE Oval Electric Kiln

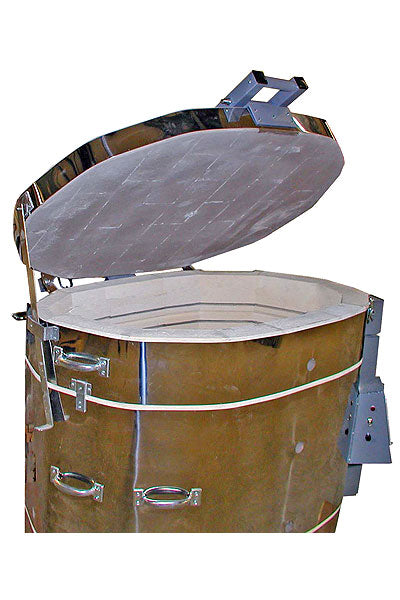

The 2023HE features a unique oval chamber design that maximizes capacity for large platters, oval serving pieces, and wide sculptural work that won't fit in standard round kilns. At 30 inches wide and 20 inches front-to-back, this 7.2 cubic foot kiln fires to cone 10 on 240V single-phase power with the KilnStar digital controller. The oval footprint saves floor space compared to square kilns while providing generous width for oversized functional ware.
Firing rangeCone 10 / 2350°F
Chamber size30″ W × 20″ D × 24.5″ H / 7.2 cu ft
Power240V or 208V single-phase
ShapeOval chamber for platters & wide work
What’s included

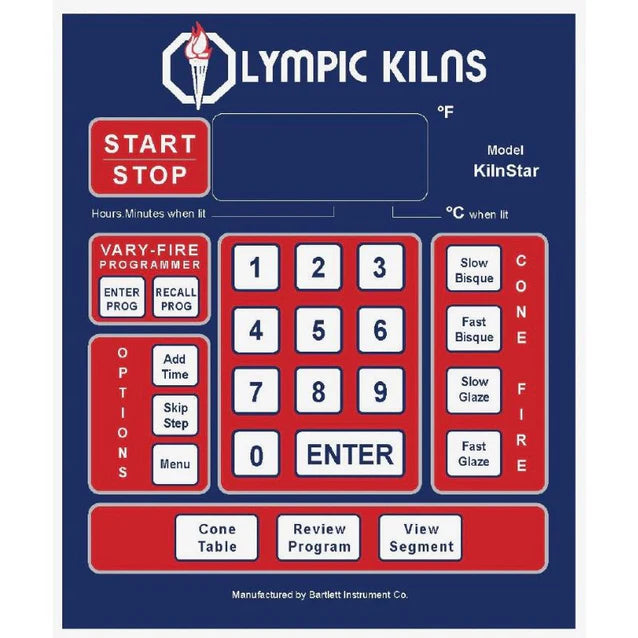

KilnStar digital controller
6-segment programmable controller with cone fire mode, multi-speed bisque, user programs, and delay start
3-inch firebrick
High-duty 2600°F rated insulating firebrick for efficient heat retention and cone 10 capability
Stainless steel jacket
Corrosion-resistant stainless exterior with powder-coated steel bands and reinforced lid
Balanced element design
Elements distributed throughout chamber walls for even heat distribution across the oval firing space
Metal stand with casters
Heavy-duty steel stand with locking swivel casters for mobility and working height positioning
Pilot light indicator
External power indicator shows when kiln is energized for safety awareness
Technical specifications
Model2023HE
Chamber dimensions30″ W × 20″ front-to-back × 24.5″ H
Chamber capacity7.2 cubic feet
Brick thickness3 inches
Max firing temperatureCone 10 / 2350°F
Voltage options240V or 208V single-phase
Amperage @ 240V48 amps
Wattage @ 240V11,520 watts
Recommended breaker60 amp
Plug configurationHardwired (no plug included)
Wire size6 AWG copper minimum
ControllerKilnStar digital (6-segment programmable)
Shipping weightApproximately 650 lbs
Optional accessories
Solid-state relay (SSR) upgrade
Replaces mechanical contactors for silent operation, extended component life, and smoother power delivery
Furniture kit
Custom-sized kiln shelves and posts for the oval chamber configuration

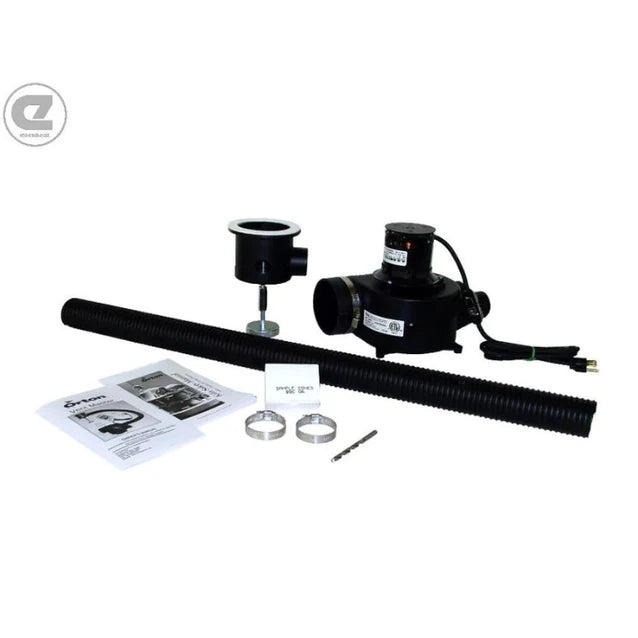

Orton automatic vent system
Downdraft ventilation for fume removal, even firing, and safer studio air quality
Lid lift system
Spring-assisted mechanism for safe one-handed lid opening and reduced strain
Power interrupt module
Automatically shuts down kiln during power outage to prevent thermal shock and element damage
Type S thermocouple replacement
Spare thermocouple for temperature sensing system maintenance
Emergency parts kit
Critical spare parts including thermocouple, fuses, and connectors for quick repairs
Controller upgrade

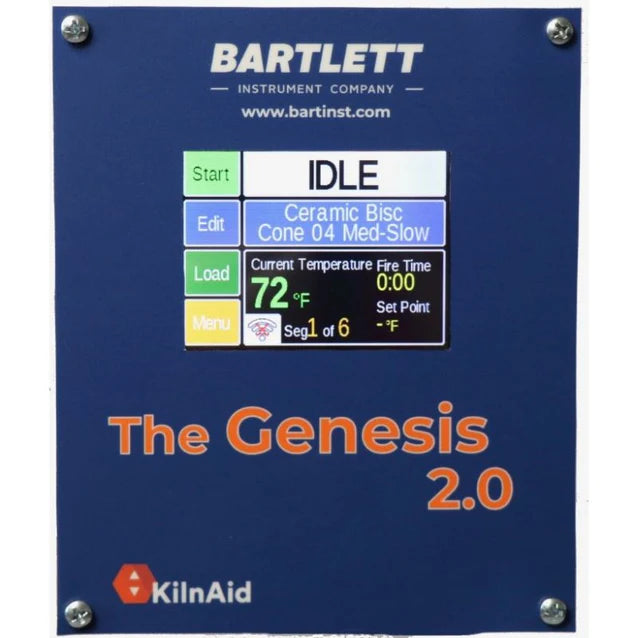

Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis replaces the KilnStar with a full-color touchscreen interface, expanded programming capacity, and advanced diagnostic tools for production studios and advanced ceramicists.
- Full-color touchscreen with intuitive menu navigation
- Store up to 100 custom firing programs with 32 segments each
- Real-time firing graphs display temperature curves during and after firing
- Data logging exports firing records via USB for quality control documentation
- Bluetooth connectivity for wireless monitoring and control via smartphone app
- Advanced diagnostics display element resistance and system health status
Common questions
What electrical service does the 2023HE require?
The 2023HE requires 240V or 208V single-phase power at 48 amps, with a recommended 60-amp dedicated breaker. The kiln must be hardwired by a licensed electrician using 6 AWG copper wire minimum. It cannot be plugged into a standard outlet. You'll need to verify your electrical panel has capacity for this load before installation.
Does this kiln include kiln shelves and posts?
No, furniture is sold separately. Because the 2023HE has an oval chamber, you'll need custom-sized oval or rectangular shelves. We recommend ordering a furniture kit designed specifically for this model to maximize usable space and ensure proper fit within the 30″ × 20″ chamber.
What makes the oval shape advantageous over a round kiln?
The 30-inch width accommodates large platters, oval serving pieces, and wide sculptural forms that won't fit in standard 23-inch round kilns. The 20-inch depth keeps the footprint smaller than a 30-inch square kiln while still providing 7.2 cubic feet of capacity. This shape is particularly valuable for production potters making dinnerware with large serving pieces.
Can this kiln fire stoneware and porcelain to full maturity?
Yes, the 2023HE fires to cone 10 (2350°F), which covers all standard ceramic clay bodies including high-fire stoneware, porcelain, and cone 10 glazes. The 3-inch brick provides the insulation needed for efficient high-temperature firings with proper heat retention.
How is the Olympic warranty activated?
Olympic's one-year limited warranty must be registered within 30 days of delivery. Registration is done through Olympic Kilns directly. The warranty is only valid when purchased through authorized dealers like Peach State Pottery, and covers defects in materials and workmanship under normal use.
Not sure if the 2023HE is the right kiln for your space?
Our team can help you evaluate electrical requirements, compare capacity options, and coordinate delivery to your Atlanta-area studio.
