Olympic Kilns 1818E Electric Kiln
Save $845.00
Original Price
$2,825.00
Current Price
$1,980.00
Free Freight Delivery Included
✓ No sales tax outside GA
✓ Liftgate included free
✓ Authorized dealer
Made to Order: Kilns are built after ordering to your exact specifications. Current estimate is 8–12 weeks.
Need it sooner? Quick-Ship models ship in 2–3 weeks
View Quick-Ship
Questions? Call or text us at (470) 264-3563
Olympic Kilns · Electric Kiln · Stackable Top-Loading

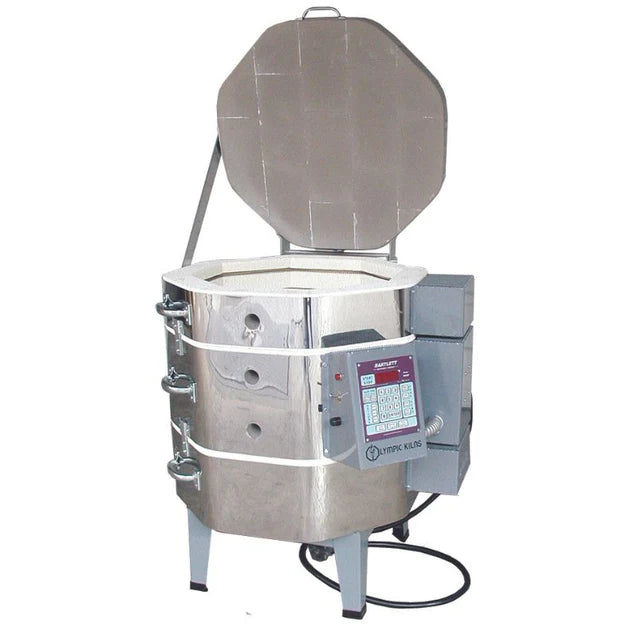

Olympic 1818E Stackable Electric Kiln
The 1818E is Olympic's compact stackable kiln designed for studios with limited space or artists who relocate frequently. Its modular two-section design disassembles completely, allowing the kiln to fit through standard doorways and up staircases. Fires to Cone 8 with 3-inch thick firebrick insulation and comes standard with the KilnStar digital controller for precise firing control.
Max TemperatureCone 8 / 2300°F
Firing Chamber17.5″ W × 18″ H / 2.5 cu ft
Power240V or 208V / 48A
DesignStackable / Relocatable
What’s included

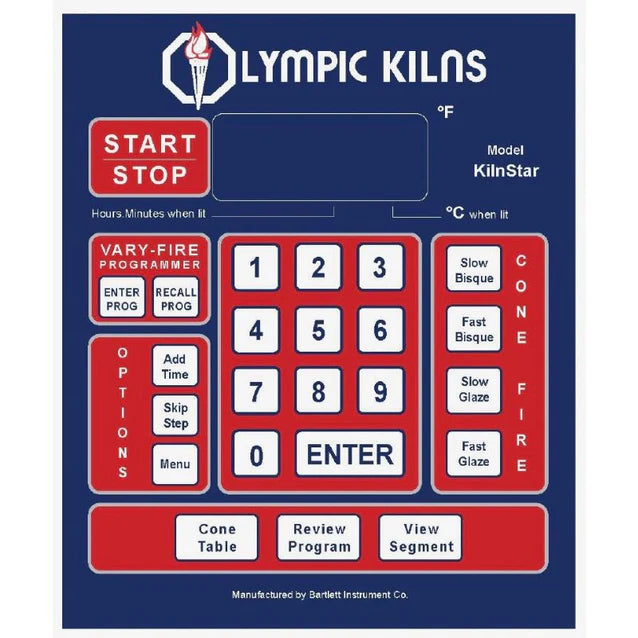

KilnStar Digital Controller
8-segment programmable controller with Cone Fire mode, ramp/hold programming, and thermocouple input for precise temperature control
3-Inch Firebrick Insulation
Premium 2300°F rated firebrick provides efficient heat retention and energy savings with long-lasting durability
Stackable Two-Section Design
Modular construction allows complete disassembly for moving through doorways, up stairs, and relocation between studios
Metal Stand
Heavy-duty steel stand elevates kiln to comfortable loading height and provides stable firing platform
Stainless Steel Jacket
Durable outer shell protects internal components and maintains professional appearance through years of use
Balanced Element Design
Kanthal A-1 heating elements wound in precision coils for even heat distribution throughout the firing chamber
Pilot Light
External indicator light shows at-a-glance when kiln is powered on for safety awareness
Type K Thermocouple
Industrial-grade temperature sensor provides accurate readings to the controller throughout the firing cycle
Technical specifications
Model1818E
Internal Dimensions17.5″ diameter × 18″ height
Firing Chamber Capacity2.5 cubic feet
Brick Thickness3 inches
Maximum TemperatureCone 8 / 2300°F
Voltage Options240V single phase or 208V single phase
Amperage48 amps at 240V / 48 amps at 208V
Wattage11,520 watts at 240V / 9,984 watts at 208V
Recommended Breaker60 amp
Plug ConfigurationNEMA 14-60 (240V) or hardwire recommended
Wire Size Required6 AWG copper minimum
Element TypeKanthal A-1 wire coil elements
Shipping WeightApproximately 350 lbs
Design TypeTop-loading stackable two-section
Optional accessories
Solid State Relay (SSR) Upgrade
Silent electronic switching replaces mechanical relays for quieter operation, longer component life, and more precise temperature control
Furniture Kit
Matched set of kiln shelves and posts sized specifically for the 1818E chamber dimensions to maximize loading capacity
Orton Kiln Vent
Downdraft ventilation system removes fumes and moisture during firing while improving temperature uniformity and glaze results
Lid Lift System
Spring-assisted mechanism makes opening and closing the heavy kiln lid effortless and reduces strain during loading
Rolling Stand
Heavy-duty caster base allows kiln repositioning within the studio without disassembly or heavy lifting
Power Interrupt Module
Automatically shuts down kiln if power loss occurs during firing to prevent thermal shock damage when power returns
Dual Media Lid
Reversible kiln lid with different brick configurations on each side optimized for ceramic and glass firing applications
Multi-Zone Firing Upgrade
Independent element control for top and bottom sections allows custom temperature gradients for specialized firing techniques
Emergency Parts Kit
Essential spare components including thermocouple, element connectors, and relays to minimize downtime from component failure
Type S Thermocouple
Platinum-rhodium upgrade thermocouple for improved accuracy and longer lifespan compared to standard Type K
Controller upgrade

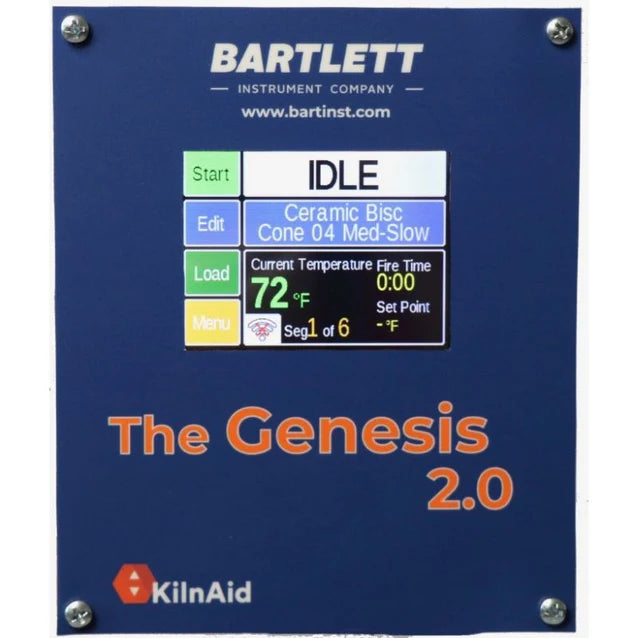

Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis replaces the standard KilnStar controller with a full-color touchscreen interface offering expanded programming capabilities, Wi-Fi connectivity for remote monitoring, and an intuitive menu system that eliminates the learning curve of button-based controllers.
- Full-color 4.3-inch touchscreen with icon-based navigation
- Built-in Wi-Fi for remote monitoring and notifications via smartphone app
- Stores up to 50 custom firing programs with unlimited segments per program
- Cone Fire mode with expanded cone chart including glass fusing temperatures
- Real-time graphing shows temperature curve during active firing
- Diagnostic alerts identify specific issues with elements, thermocouples, or relays
Common questions
What electrical work is required to install the 1818E?
The 1818E requires a dedicated 60-amp circuit at 240V single phase with 6 AWG copper wire minimum. Most installations use a NEMA 14-60 receptacle, though hardwiring directly to the breaker panel is also common. A licensed electrician should evaluate your electrical panel capacity and install the circuit in compliance with local codes. The kiln draws 48 amps at full power, so the 60-amp breaker provides appropriate headroom. If only 208V is available in your building, the kiln can be configured for that voltage but will fire slightly slower.
Does the 1818E come with kiln shelves and posts?
No, kiln furniture is sold separately to allow you to configure the exact shelf setup for your work. For the 17.5-inch diameter chamber, we recommend starting with a furniture kit that includes round or half-round shelves sized at 16.5 inches to allow proper airflow around the edges. Most customers use 3-4 shelves with appropriate post heights to create multiple loading levels. We can help you determine the optimal furniture configuration based on the typical height of your ceramic pieces.
How difficult is it to disassemble and move the stackable design?
The 1818E separates into two ring sections, a lid, and a metal stand—all of which can be moved by two people without special equipment. Each ring section weighs approximately 100-120 pounds. Disassembly takes about 30 minutes and requires disconnecting the wiring between sections (clearly labeled connections), removing the band clamps, and lifting each section apart. This design allows the kiln to pass through standard 30-inch doorways and up staircases, which is impossible with one-piece kilns of this capacity. Reassembly takes about the same time and requires no special tools.
Is the one-year warranty really only valid through authorized dealers?
Yes, Olympic Kilns only honors warranty claims on kilns purchased through their authorized dealer network, which includes Peach State Pottery. Kilns purchased from unauthorized resellers, used marketplaces, or out-of-region dealers are not covered. The warranty must be registered within 30 days of delivery and covers defects in materials and workmanship including elements, firebrick, metal components, and the controller. Normal wear items like thermocouples, relays (if not SSR-equipped), and element deterioration from use are not covered. Purchasing from an authorized dealer ensures you receive factory support and genuine Olympic replacement parts.
Can the 1818E fire to Cone 10, or is it limited to Cone 8?
The 1818E is rated to Cone 8 (2300°F) maximum. While the firebrick can withstand higher temperatures, the elements and electrical components are not designed for Cone 10 operation (2350°F+). Attempting to fire beyond Cone 8 will dramatically shorten element life, void your warranty, and may cause controller or relay failure. If you need Cone 10 capability for high-fire stoneware or porcelain, consider Olympic's Cone 10-rated models with heavier element gauge and upgraded components. For most mid-range glazes and clay bodies rated to Cone 5-6, the 1818E provides excellent results with good element longevity.
Not sure if the 1818E is the right kiln for your space?
Our team can evaluate your electrical service, studio layout, and firing needs to recommend the best Olympic kiln configuration.
