Olympic Kilns 1414HE Ceramic Test Kiln
Save $637.00
Original Price
$2,185.00
Current Price
$1,548.00
Free Freight Delivery Included
✓ No sales tax outside GA
✓ Liftgate included free
✓ Authorized dealer
Made to Order: Kilns are built after ordering to your exact specifications. Current estimate is 8–12 weeks.
Need it sooner? Quick-Ship models ship in 2–3 weeks
View Quick-Ship
Questions? Call or text us at (470) 264-3563
Olympic Kilns · Electric Kiln · Test Kiln

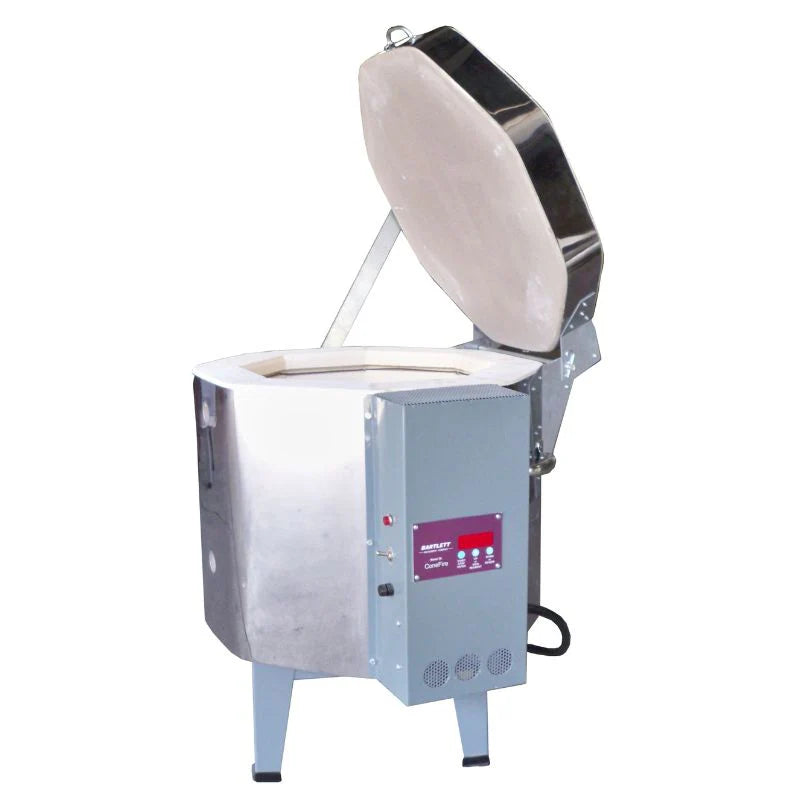

Olympic 1414HE Electric Test Kiln
The Olympic 1414HE is a compact high-fire test kiln designed for glaze testing, small production runs, and experimental work up to Cone 10. Built with 3-inch brick walls and a 240V heating system, it delivers consistent high-fire results in a small footprint ideal for studios with limited space. The included KilnStar controller provides 8 cone-fire programs plus 3 user-definable programs for precise firing schedules.
Max temperatureCone 10 / 2350°F
Chamber size14.5″ W × 13.5″ H
Voltage240V single phase
Breaker required30 amp
What’s included
KilnStar controller
8 cone-fire programs plus 3 user-definable programs with ramp/hold capability and program memory

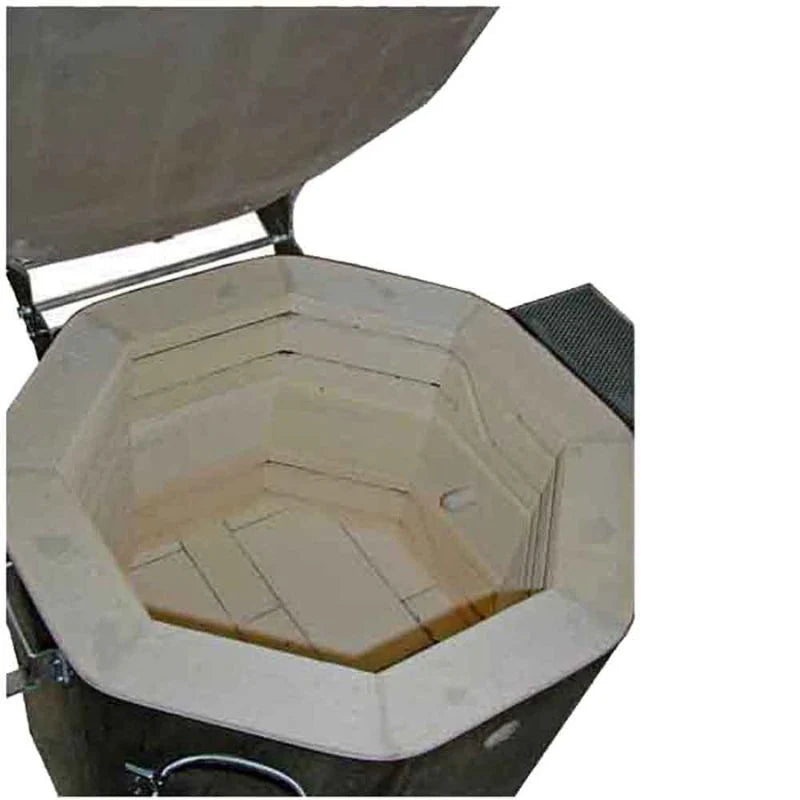

3-inch brick construction
High-grade insulating firebrick provides excellent heat retention and efficiency for high-fire work
Stainless steel jacket
Durable exterior shell with powder-coat finish for long-term protection and professional appearance
Balanced element design
Elements positioned in lid and chamber walls for even heat distribution throughout firing chamber
Metal stand with casters
Heavy-duty wheeled stand allows repositioning and provides convenient working height
Pilot light indicator
External power indicator shows at-a-glance when kiln is receiving electricity
Technical specifications
Model1414HE
Interior dimensions14.5″ diameter × 13.5″ height
Firing chamber capacity1.4 cubic feet
Brick thickness3 inches
Maximum firing temperatureCone 10 / 2350°F
Voltage240V single phase
Amperage23 amps
Wattage5520 watts
Breaker size required30 amp
Plug configurationNEMA 6-30 (hardwire recommended)
Wire gauge required10 AWG, 3-wire with ground
Lid designTop-loading hinged lid
ControllerKilnStar with 8 cone programs + 3 user programs
Shipping weightApproximately 220 lbs
Optional accessories
Solid State Relay (SSR) upgrade
Extends element life by 50% or more through smoother power delivery and elimination of contact wear
Furniture kit
Matched kiln shelves and posts sized specifically for the 1414HE chamber dimensions
Orton Kilnvent system
Downdraft ventilation system removes fumes and improves firing consistency while maintaining kiln longevity
Lid lift system
Spring-assisted mechanism reduces strain when opening hot kiln and provides hands-free lid support
Power interrupt module
Protects controller from power surges and allows firing to resume after brief power outages
Type S replacement thermocouple
Standard thermocouple for accurate temperature sensing in cone 10 firing range
Emergency parts kit
Essential replacement components including thermocouple, relays, and connectors for quick repairs
Controller upgrade
Genesis Touchscreen — Bartlett InstrumentsRecommended
The Genesis is Bartlett's most advanced kiln controller, featuring a full-color touchscreen interface that replaces the standard KilnStar. Ideal for potters running complex firing schedules or who want detailed diagnostics and firing data logging.
- Large color touchscreen with intuitive menu navigation
- Store up to 250 custom firing programs with unlimited segments
- Real-time temperature graphing during firing with historical data review
- Advanced diagnostics including element resistance tracking and alert notifications
- USB port for program backup, software updates, and data export
- Delay start scheduling and firing cost calculator with energy tracking
Common questions
What electrical work is required for the 1414HE?
The 1414HE requires a 240V single-phase circuit with a 30-amp breaker and 10 AWG copper wire with ground. Most installations require a licensed electrician to install a dedicated circuit. Hardwiring is recommended over a plug connection for safety and code compliance. The kiln should be located within reasonable distance of your electrical panel to minimize wire runs.
Does this kiln include kiln furniture?
No, kiln shelves and posts are sold separately. We recommend purchasing a furniture kit specifically sized for the 14.5-inch chamber diameter. A typical setup includes 2-3 full round shelves plus half-shelves for efficient stacking, along with posts in various heights (1″, 2″, 3″, and 4″).
What can I fit inside a 1.4 cubic foot test kiln?
The 14.5″ × 13.5″ chamber accommodates approximately 30-40 glaze test tiles per firing, or several small production pieces like 4-inch bowls or 6-inch cylinders. It's ideal for glaze testing, jewelry, small sculpture, and experimental work where you need high-fire results without committing to a full production kiln load.
How do I register the warranty?
Olympic Kilns requires warranty registration within 30 days of delivery. You'll register directly with Olympic through their website using your purchase documentation from Peach State Pottery. The one-year limited warranty covers manufacturing defects and workmanship but does not cover wear items like elements, thermocouples, or firebrick, which are considered consumables.
Should I upgrade to an SSR with this kiln?
A Solid State Relay upgrade is highly recommended for test kilns that fire frequently. SSRs extend element life by 50% or more by providing smoother power delivery without the mechanical wear of standard contactors. For a test kiln that may fire multiple times per week, the SSR upgrade typically pays for itself within two years through reduced element replacement costs.
Not sure if the 1414HE is the right kiln for your space?
Our team can help you evaluate electrical requirements, space planning, and whether this test kiln meets your production needs.
Talk to an expert →
